How to Choose Between Spot Beam and Flood Beam LED Work Lights

Introduction

Choosing the right LED work light is not only about brightness or wattage. In real-world applications, the beam pattern of a work lamp directly affects visibility, operational safety, and overall efficiency. Whether used on construction equipment, agricultural machinery, off-road vehicles, or industrial workspaces, selecting the wrong beam type can lead to blind spots, reduced visibility, and unnecessary eye strain.

Among modern LED work lamps, the two most common beam patterns are Spot Beam and Flood Beam. While both are designed to improve illumination, they serve very different purposes. Understanding how each beam pattern works is essential for selecting the right lighting solution for your environment and application.

With more than 40 years of automotive lighting experience, SIRIUS Light Technology Co., Ltd. specializes in the development of high-performance LED lighting systems for global OEM and ODM markets. Through advanced optical engineering and beam pattern optimization, SIRIUS designs LED work lights that deliver reliable illumination for demanding industrial and automotive environments.

Understanding Beam Patterns in LED Work Lights

The term “beam pattern” refers to how light is distributed from a lamp. In LED work lights, beam design plays a major role in determining:

• Illumination distance
• Coverage width
• Visibility efficiency
• Driver and operator comfort

Even if two work lights produce the same lumen output, their real-world performance can differ dramatically depending on the beam pattern.

The two primary beam patterns used in LED work lamps are:

• Spot Beam
• Flood Beam

Some advanced work lights also combine both technologies into a Combo Beam (ig. NS-2596)design.

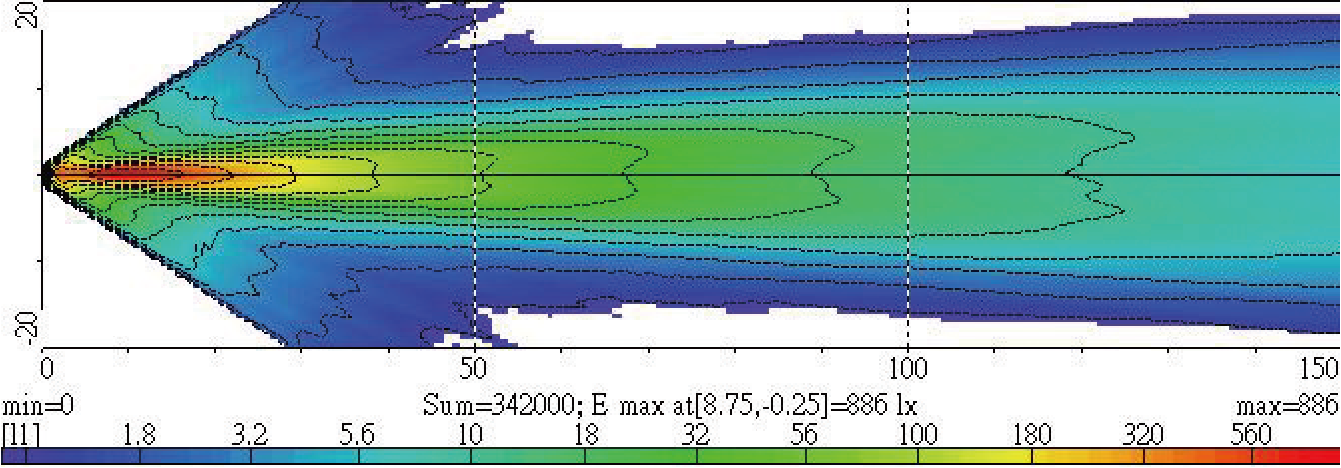

1. What Is a Spot Beam LED Work Light?

A Spot Beam LED work light is designed to project light over long distances using a narrow beam angle, typically between 10° and 30°.

Instead of spreading light widely, spot beam work lamps concentrate illumination into a focused projection pattern. This allows operators to see farther ahead, making them ideal for high-speed or long-range applications.

Advantages of Spot Beam Work Lights

Long-Distance Visibility: Spot beam lights provide excellent forward projection, helping drivers and operators identify obstacles earlier.

Improved High-Speed Safety: For vehicles operating at higher speeds, longer visibility provides more reaction time.

Better Penetration: Spot beams are effective in dark environments and can better penetrate dust, fog, or outdoor conditions.

Typical Applications

Spot beam LED work lights are commonly used for:

• Off-road vehicles
• Mining equipment
• Search and rescue vehicles
• Highway service trucks
• Agricultural machinery operating at night

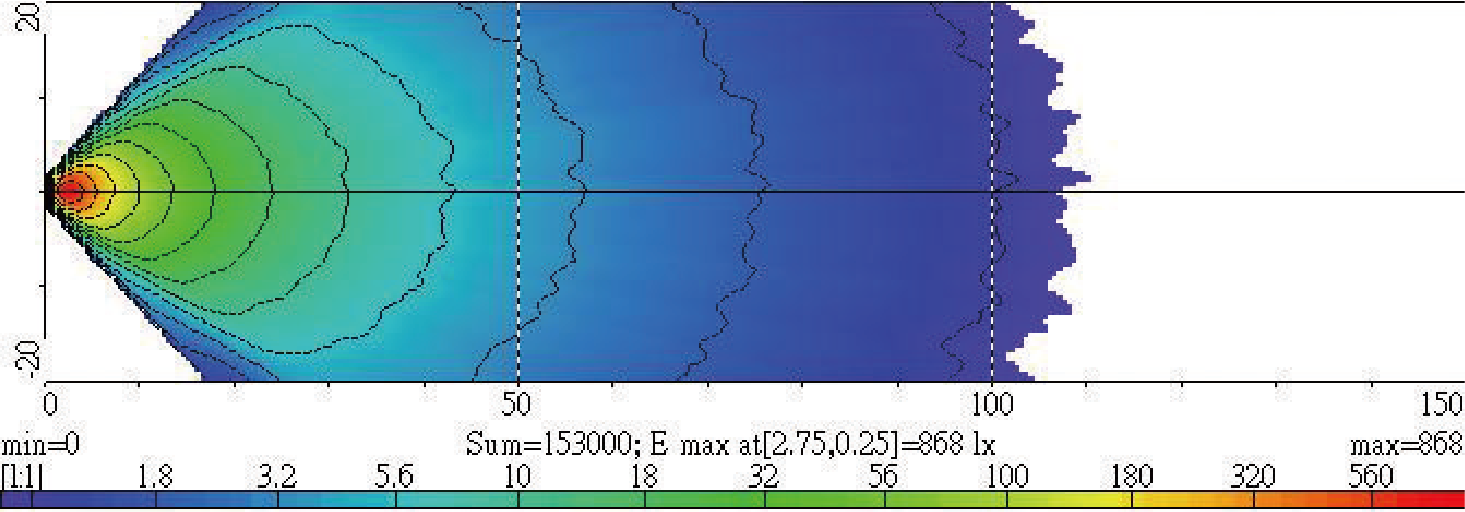

2. What Is a Flood Beam LED Work Light?

A Flood Beam LED work light is designed to spread light over a wide area using a broad beam angle, often between 60° and 120°.

Instead of focusing on distance, flood beam work lamps prioritize surrounding visibility and area coverage.

Advantages of Flood Beam Work Lights

Wide Illumination Coverage: Flood beams reduce blind spots and improve visibility around the vehicle or workspace.

Better for Close-Range Work: They are ideal for tasks requiring visibility across broad working areas rather than long-distance projection.

Improved Peripheral Awareness: Operators can more easily monitor surrounding equipment, workers, and obstacles.

Typical Applications

Flood beam work lights are commonly used for:

• Construction sites
• Warehouse operations
• Agricultural equipment
• Industrial maintenance
• Utility vehicles

3. Spot Beam vs Flood Beam: What’s the Real Difference?

Although both beam types improve visibility, their lighting performance and applications are very different. The right beam pattern depends on how and where the LED work light will be used.

Feature	Spot Beam	Flood Beam
Beam Angle	Narrow beam pattern	Wide beam pattern
Illumination Distance	Long-distance projection	Short to medium-distance coverage
Coverage Area	Focused lighting area	Broad illumination area
Main Advantage	Better long-range visibility	Better surrounding visibility
Best Applications	Off-road driving, highways, mining	Construction sites, maintenance, agriculture
Visibility Style	Concentrated forward lighting	Wide-area work illumination

A spot beam LED work light is ideal when users need to see farther ahead, especially in high-speed or off-road environments. In contrast, flood beam work lights are better suited for close-range operations where wide visibility and reduced blind spots are more important.

For many professional applications, users combine both beam patterns to achieve balanced illumination performance. This is why combo beam LED work lights have become increasingly popular in modern automotive and industrial lighting systems.

4. What Is a Combo Beam Work Light?

Many modern LED work lights combine both beam patterns into a Combo Beam design.

A combo beam work lamp typically includes:

• Spot beam optics in the center for long-distance projection
• Flood beam optics on the sides for wide-area illumination

This hybrid design allows users to benefit from both distance visibility and surrounding coverage simultaneously.

Why Combo Beam Lights Are Popular

Combo beam LED work lights are especially popular in:

• Off-road vehicles
• Construction machinery
• Agricultural equipment
• Heavy-duty trucks

Because these applications often require both long-range visibility and nearby work illumination, combo beams provide a balanced lighting solution.

At SIRIUS, optical engineering teams carefully design reflector geometry and lens structures to optimize beam distribution for real-world operating conditions.

5. Factors to Consider When Choosing Beam Patterns

Selecting between spot and flood beam work lights depends on several practical considerations.

Operating Speed: Higher-speed applications generally benefit from spot beam lighting because longer visibility improves reaction time.

Working Distance: If tasks are performed close to the vehicle or machinery, flood beams are usually more effective.

Environment: Dusty, foggy, or uneven terrain may require a combination of beam types.

Vehicle Type

• Off-road trucks → Spot or combo beams
• Construction machinery → Flood beams
• Agricultural tractors → Combo beams

Understanding these operational requirements helps users choose the most effective lighting setup.

6. Optical Engineering Matters More Than Raw Brightness

Many users focus only on lumen output when purchasing work lights. However, optical engineering is often more important than raw brightness.

Poorly designed work lamps may produce:

• Uneven illumination
• Excessive glare
• Wasted light dispersion
• Reduced visibility efficiency

Professional manufacturers like SIRIUS focus on:

• Reflector design
• Lens engineering
• Beam distribution optimization
• Thermal management

This ensures that LED work lights deliver usable illumination rather than uncontrolled brightness.

FAQ

Which beam pattern is best for off-road driving?

Spot beam or combo beam work lights are generally best because they provide longer visibility distances.

Are flood beam lights better for work environments?

Yes. Flood beam lights provide wider illumination, making them ideal for close-range work areas.

What is a combo beam work light?

A combo beam combines spot and flood beam patterns into one lamp for both long-distance and wide-area illumination.

Can I use both spot and flood beam lights together?

Yes. Many vehicles use multiple work lights with different beam patterns to improve overall visibility.

Does higher lumen output always mean better performance?

No. Proper beam pattern design and optical engineering are often more important than lumen numbers alone.

Conclusion

Choosing between spot beam and flood beam LED work lights depends on how and where the lights will be used. Spot beams excel at long-distance visibility, while flood beams provide wide-area illumination for work environments and nearby operations.

As modern vehicles and industrial equipment continue to demand higher performance lighting systems, understanding beam pattern technology becomes increasingly important. Rather than focusing only on brightness, users should evaluate beam distribution, operating conditions, and application requirements when selecting LED work lamps.
