Auxiliary Lighting - HID LAMPS

NS-3741 9” HID Driving Lamp With LED Position Ring

Certification

ECE Homologation

SAE Homologation

• EMI Class 3 according to CISPR25
• Chromed finish plastic front frame and housing
• Metal reflector
• Crystal glass lens
• Stainless steel mounting bracket
• Ballast integrated into housing
• HID Xenon bulb: D1S 12V 35W
• Options: D1S 24V 35W available upon request
• Options: Black painting plastic front frame and housing
M4 stabilizer strut available upon request
NS-3741 9” HID Driving Lamp With LED Position Ring

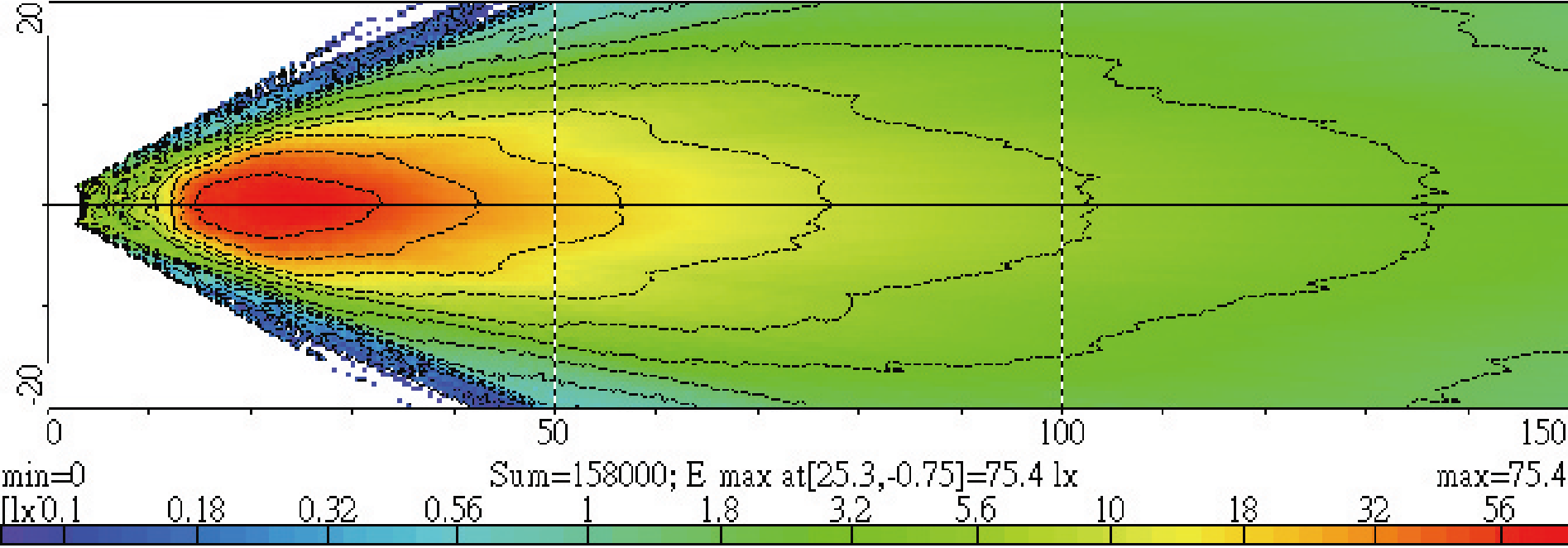

Light Distributions

Light Distributions

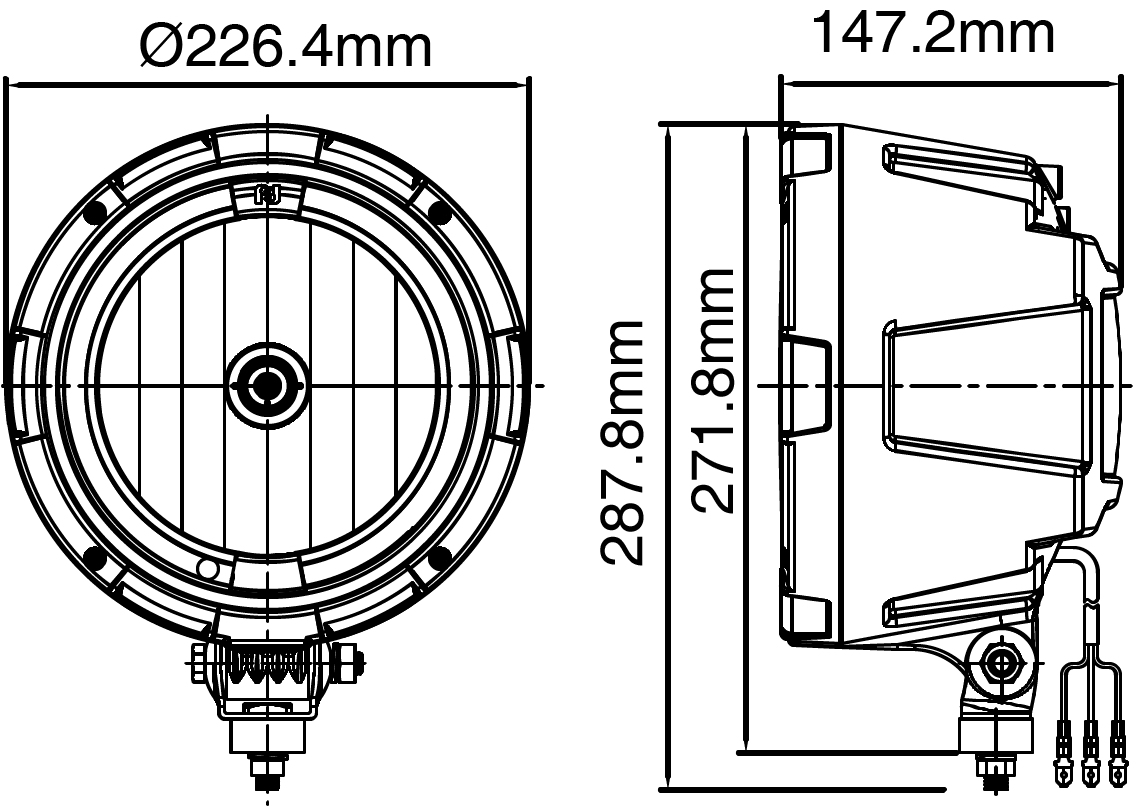

Drawings

Drawings
