Essential Lighting - HEAD LIGHTS

NS-4307L Ø90mm LED Low Beam Headlamp With Position Lamp

Certification

SAE Homologation

• EMI Class 3 according to CISPR25
• Ingress Protection IP67
• Aluminum heatsink and plastic reflector
• Polycarbonate lens
• Driver built outside
• Light source:
Low beam - High power 4-chip LED x 1 pc
Position - Flux LED x 4 pcs
• Multivolt (9-33DC) suitable for 12V and 24V vehicle
NS-4307L Ø90mm LED Low Beam Headlamp With Position Lamp

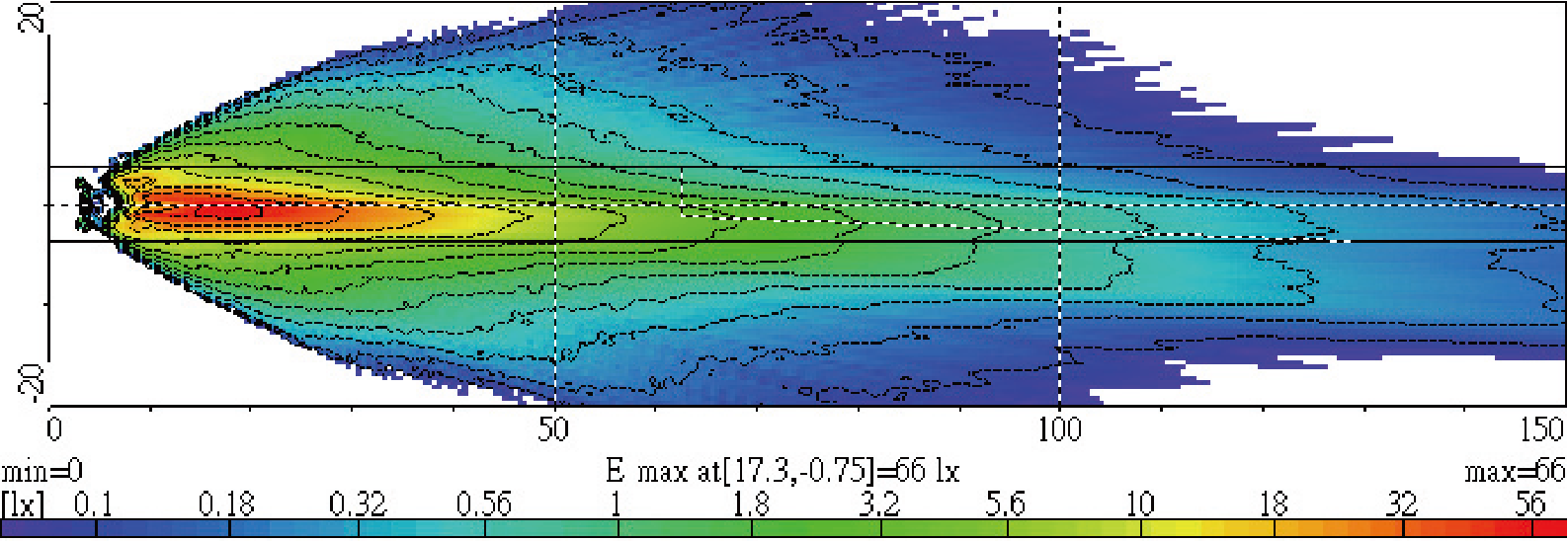

Light Distributions

Light Distributions

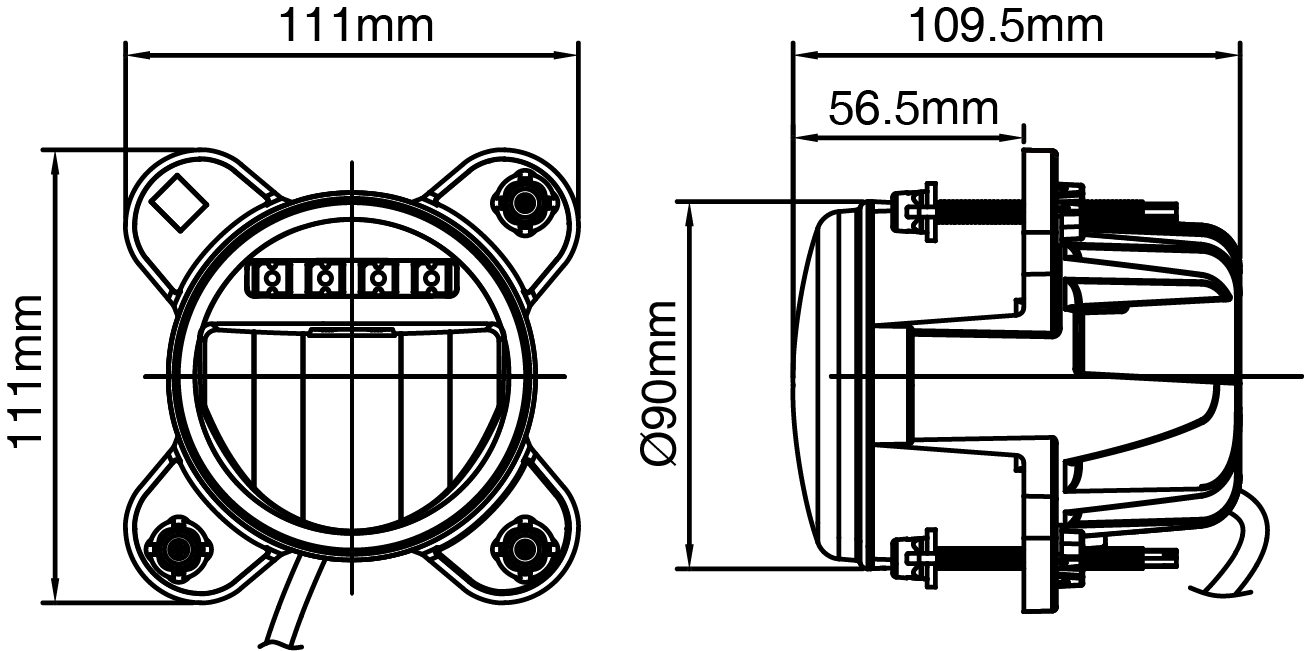

Drawings

Drawings
