Essential Lighting - HEAD LIGHTS

NS-4305L Ø90mm LED Low Beam Headlamp

Certification

ECE Homologation

Design Patent

Taiwan: 99303758

EU: 001764606

USA: 29/378262

• EMI Class 5 according to CISPR25
• Ingress Protection IP68
• Aluminum heatsink and plastic reflector
• Polycarbonate lens
• Driver built outside
• Light source: High power 4-chip LED x 1 pc & 2-chip LED x 1 pc
• Multivolt (9-33DC) suitable for 12V and 24V vehicle
• For left hand driving / right hand traffic
NS-4305L Ø90mm LED Low Beam Headlamp

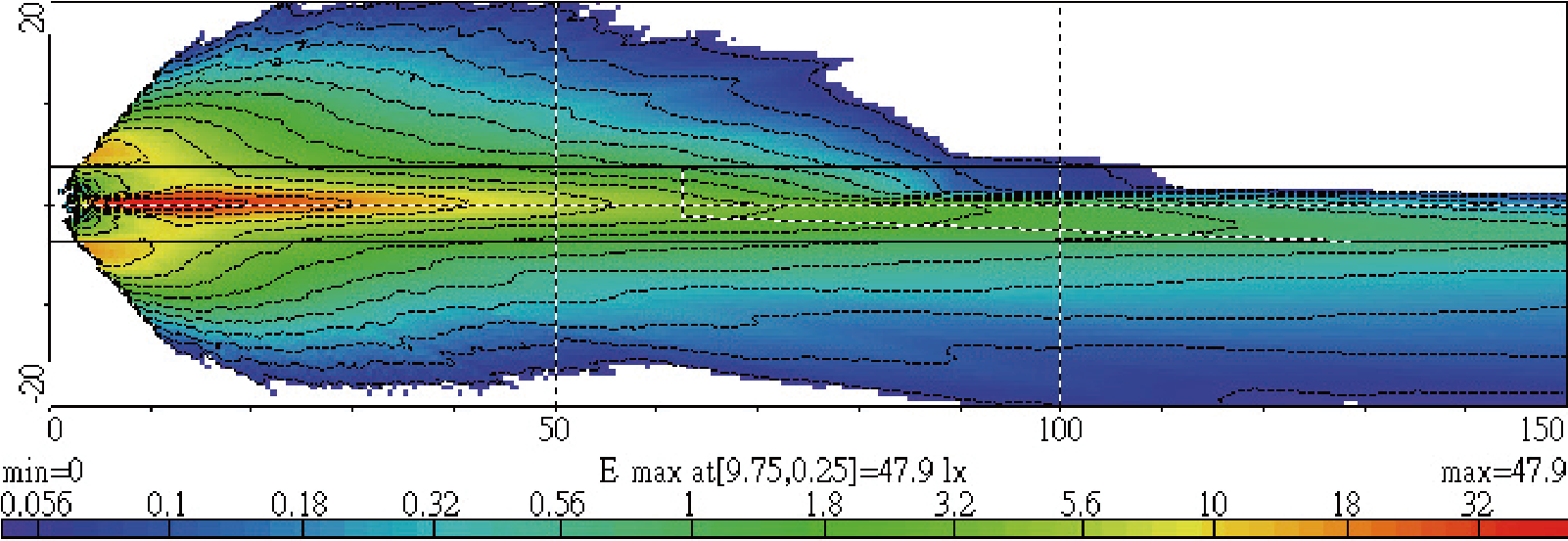

Light Distributions

Light Distributions

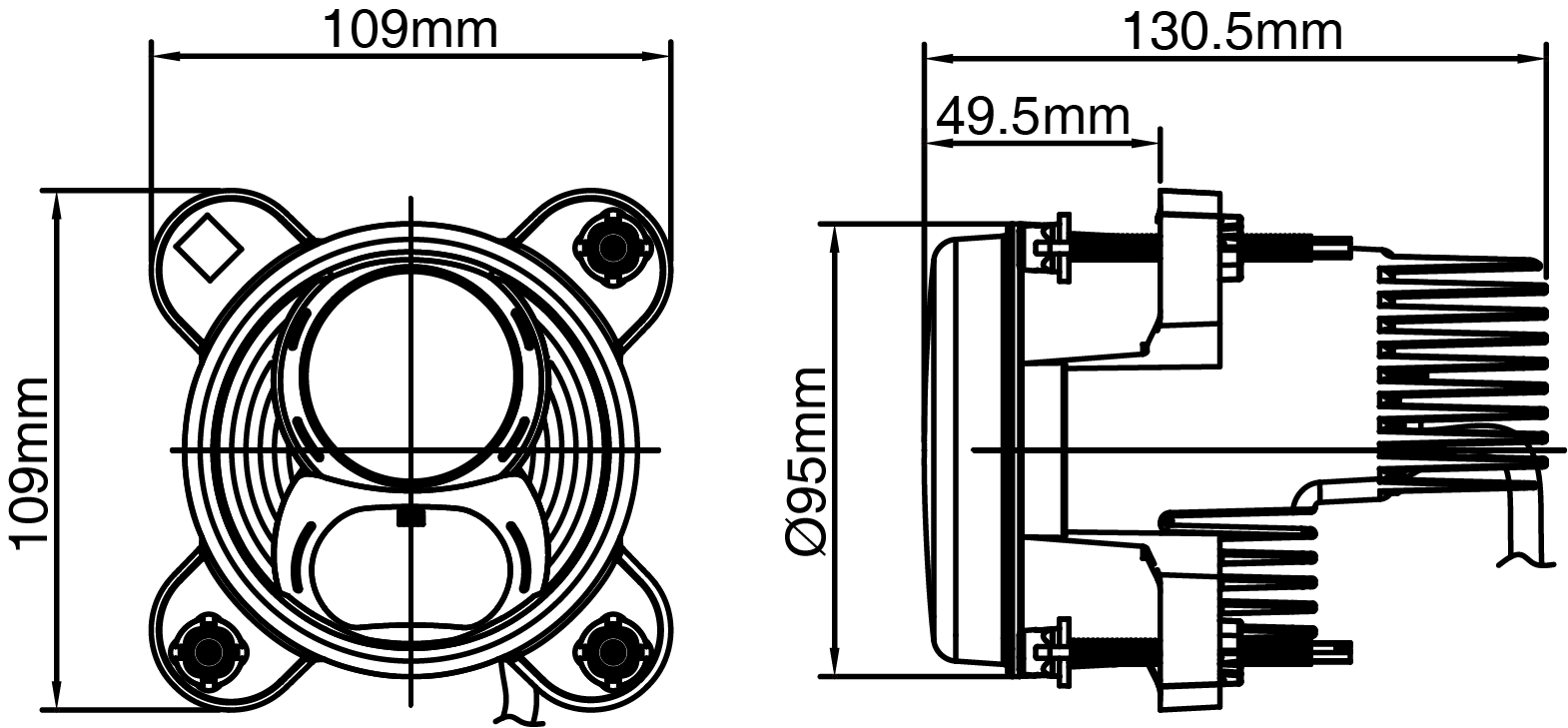

Drawings

Drawings
