Essential Lighting - HEAD LIGHTS

NS-2276 7” LED High/Low Beam Headlamp With Position Lamp

Certification

ECE Homologation

• EMI Class 3 according to CISPR25
• Ingress Protection IP66
• Aluminum heatsink and plastic reflector
• Polycarbonate lens
• Built-in driver
• Light source:
High beam - High power 4-chip LED x 1 pc
Low beam - High power 4-chip LED x 1 pc
Position - LED x 2 pcs
• Multivolt (9-33DC) suitable for 12V and 24V vehicle
• For left hand driving / right hand traffic
NS-2276 7” LED High/Low Beam Headlamp With Position Lamp

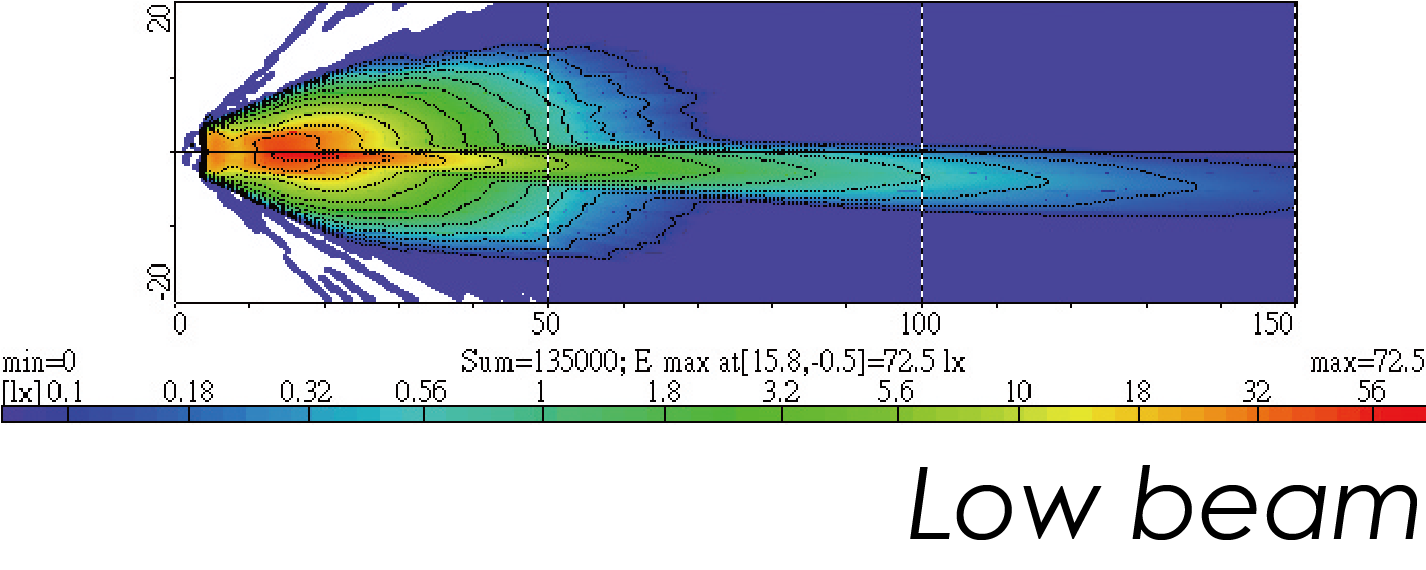

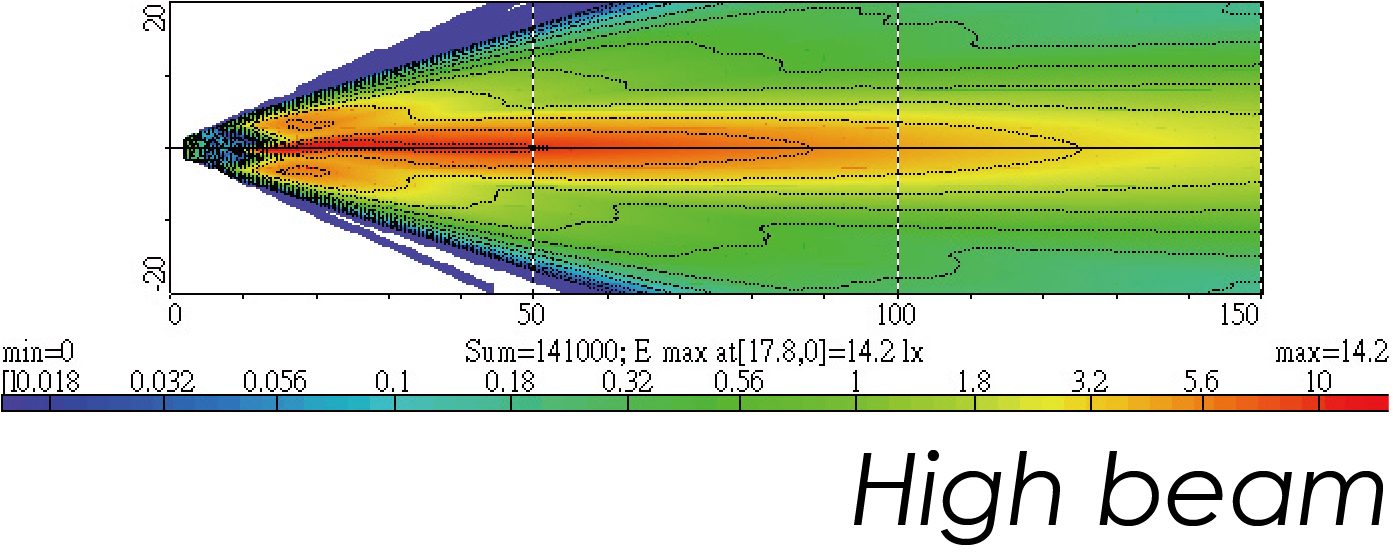

Light Distributions

Light Distributions Light Distributions

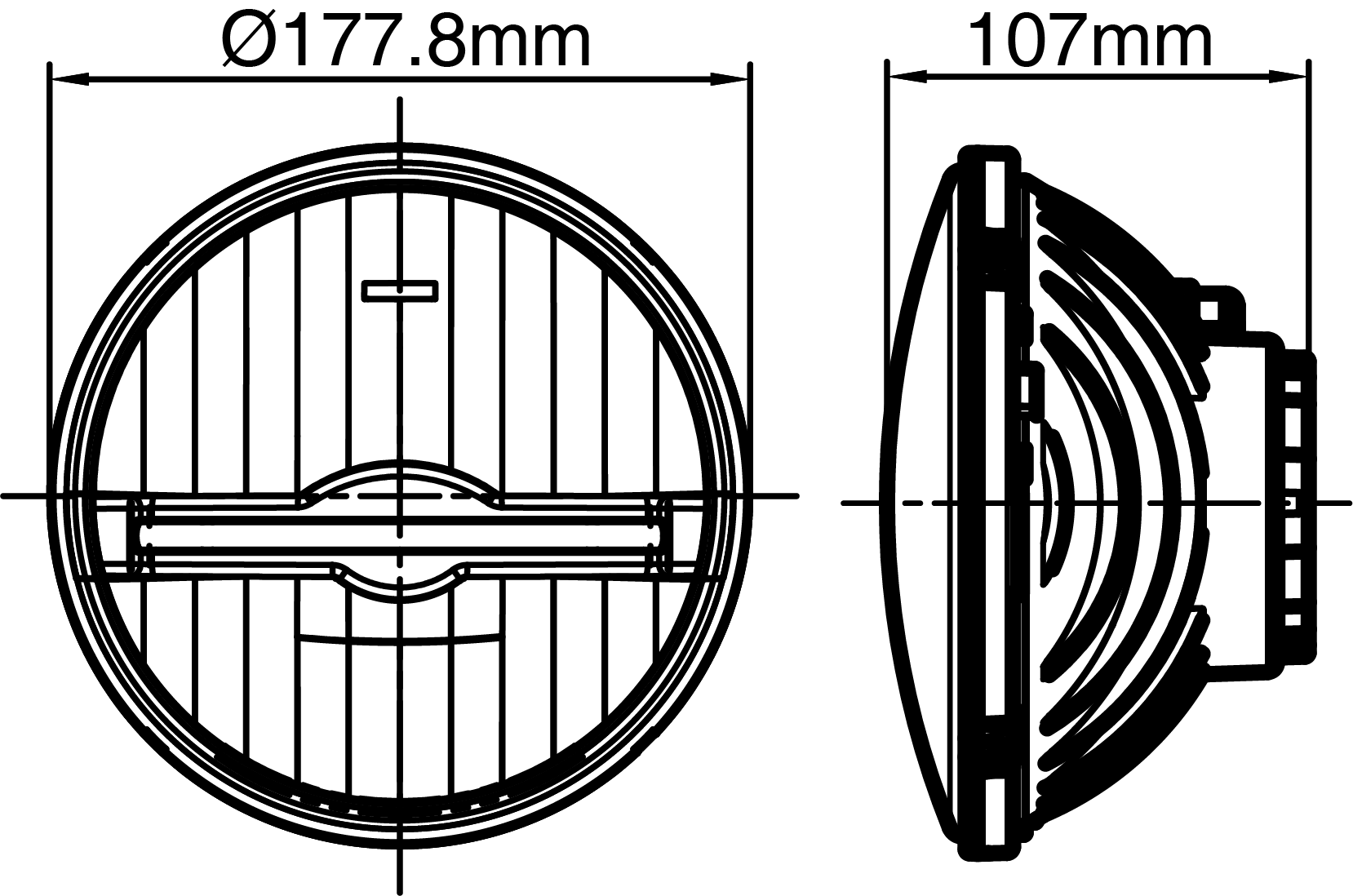

Drawings

Drawings
