Essential Lighting - HEAD LIGHTS

NS-2240L 165mm LED Low Beam Headlamp With LED Position Lamp

Certification

SAE Homologation

• EMI Class 3 according to CISPR25
• Ingress Protection IP67
• Aluminum heatsink and ABS reflector
• Polycarbonate lens
• Built-in driver
• Light source:
Low beam - High power 4-chip LED x 1 pc
Position - LED x 6 pcs, White or Yellow
• Multivolt (9-33DC) suitable for 12V and 24V vehicle
• Options: Black finish reflector available upon request
NS-2240L 165mm LED Low Beam Headlamp With LED Position Lamp

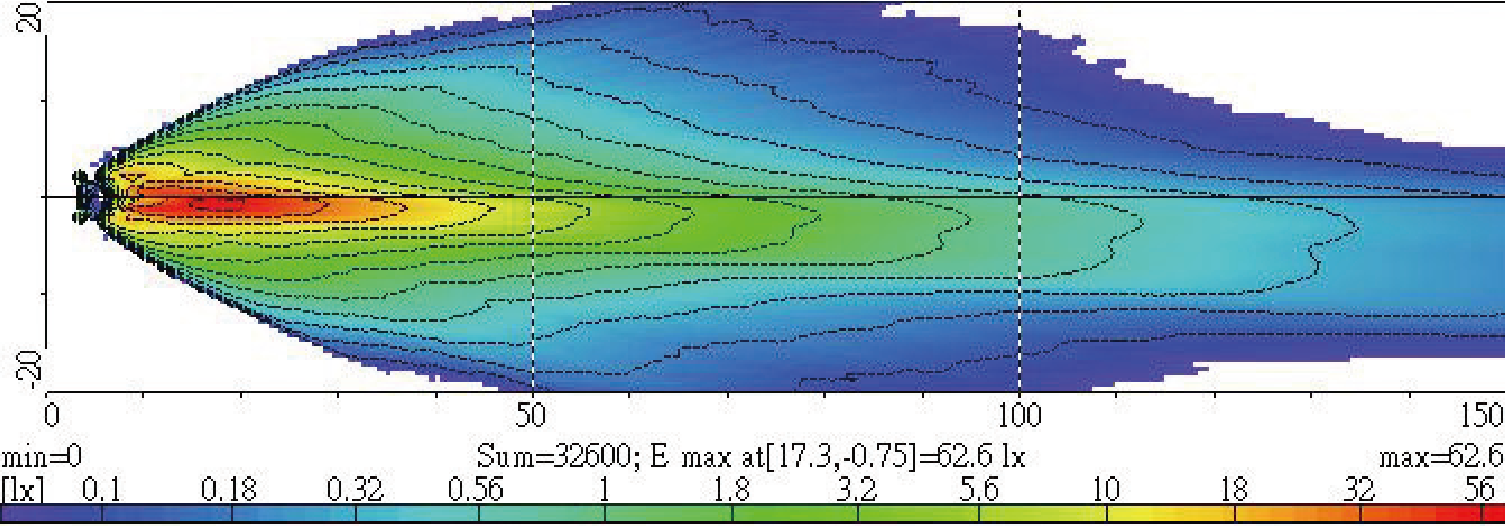

Light Distributions

Light Distributions

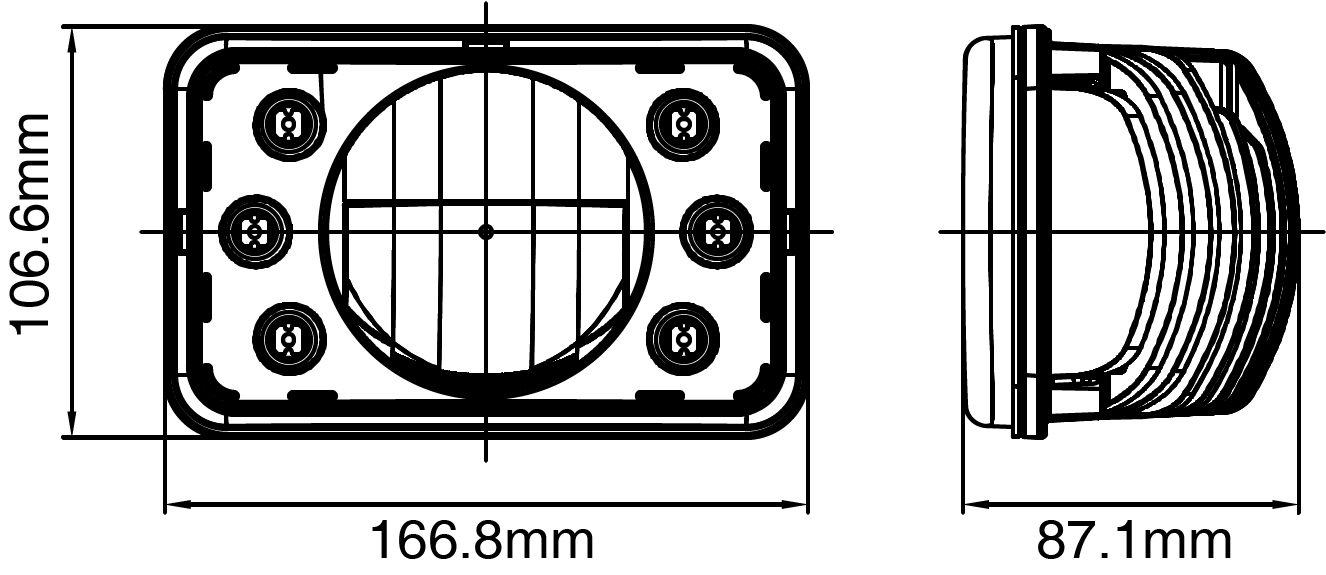

Drawings

Drawings
