Auxiliary Lighting - DRIVING/SPOT LAMPS

NS-3744 5” LED Driving Lamp

Certification

ECE Homologation

SAE Homologation

• EMI Class 5 according to CISPR25
• Ingress protection IP67
• Aluminum housing as heatsink
• Plastic front frame: Chromed finish
• Polycarbonate reflector
• Polycarbonate lens
• Steel mounting bracket, black
• Light source: High power LED x 4 pcs
• Multivolt (9-33DC) suitable for 12V and 24V vehicle
• Options: Black finish front frame available upon request
NS-3744 5” LED Driving Lamp

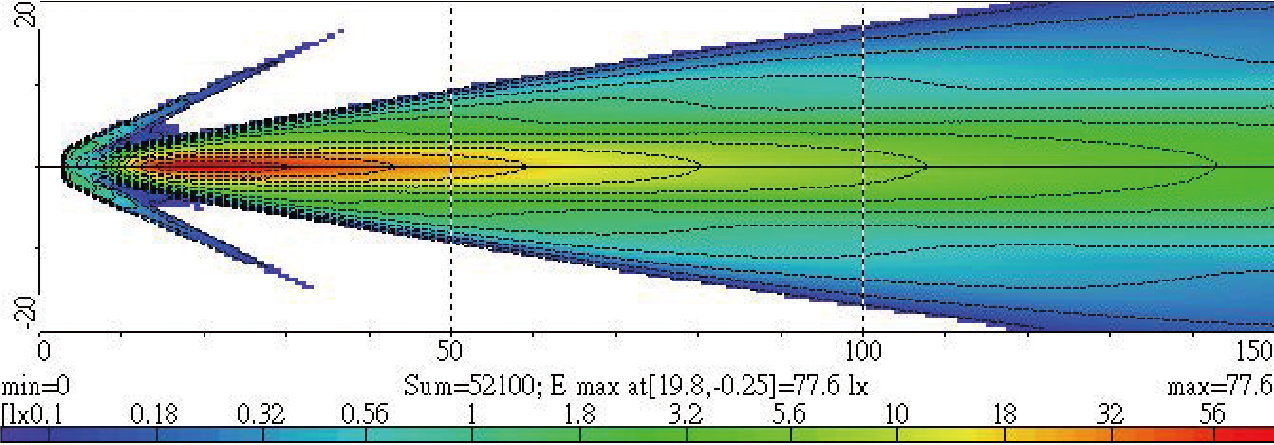

Light Distributions

Light Distributions

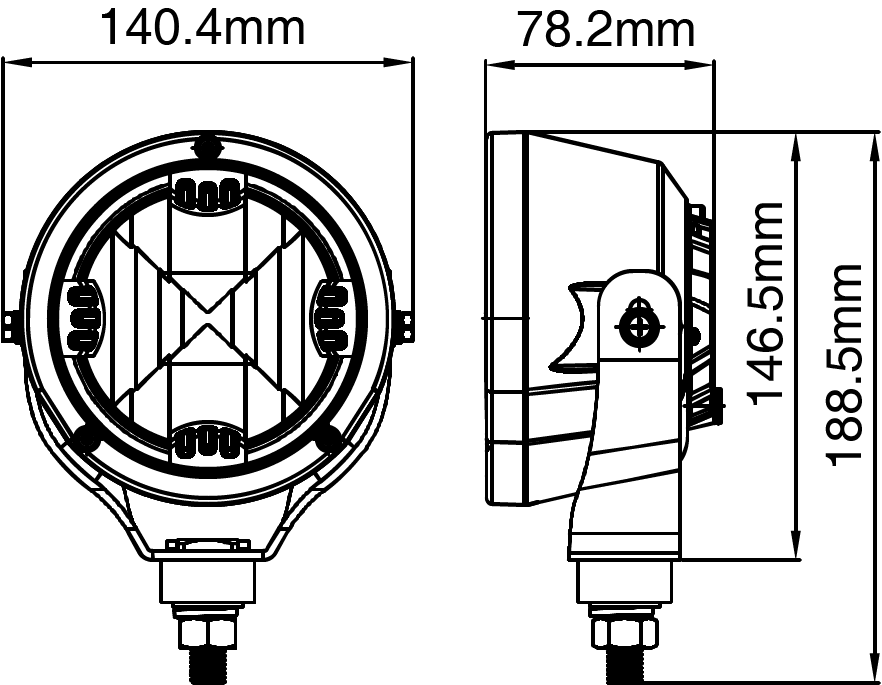

Drawings

Drawings
