Essential Lighting - HEAD LIGHTS

NS-4304 Ø90mm LED High/Low Beam Headlamp

Certification

SAE Homologation

• EMI Class 3 according to CISPR25
• Ingress Protection IP67
• Aluminum heatsink and plastic reflector
• Polycarbonate lens
• Built-in driver
• Light source:
High beam - High power 4-chip LED x 2 pcs & 5-chip LED x 2 pcs
Low beam - High power 5-chip LED x 2 pcs
• Multivolt (9-33DC) suitable for 12V and 24V vehicle
NS-4304 Ø90mm LED High/Low Beam Headlamp

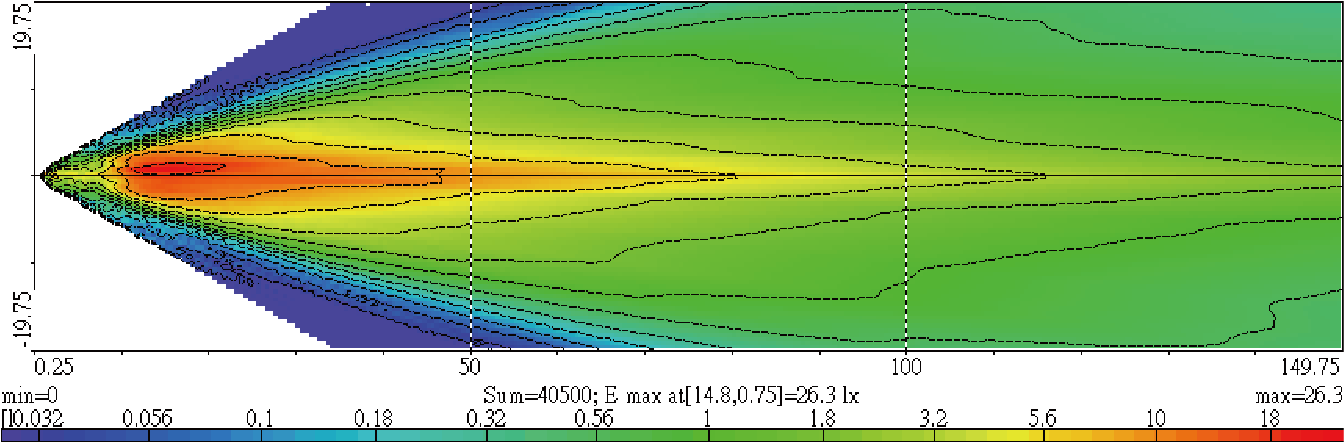

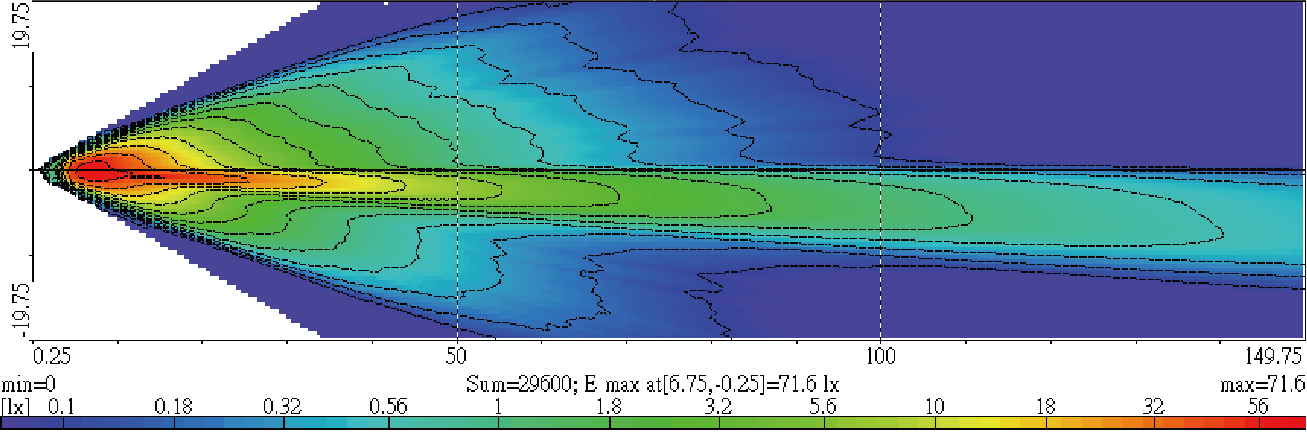

Light Distributions

Light Distributions Light Distributions

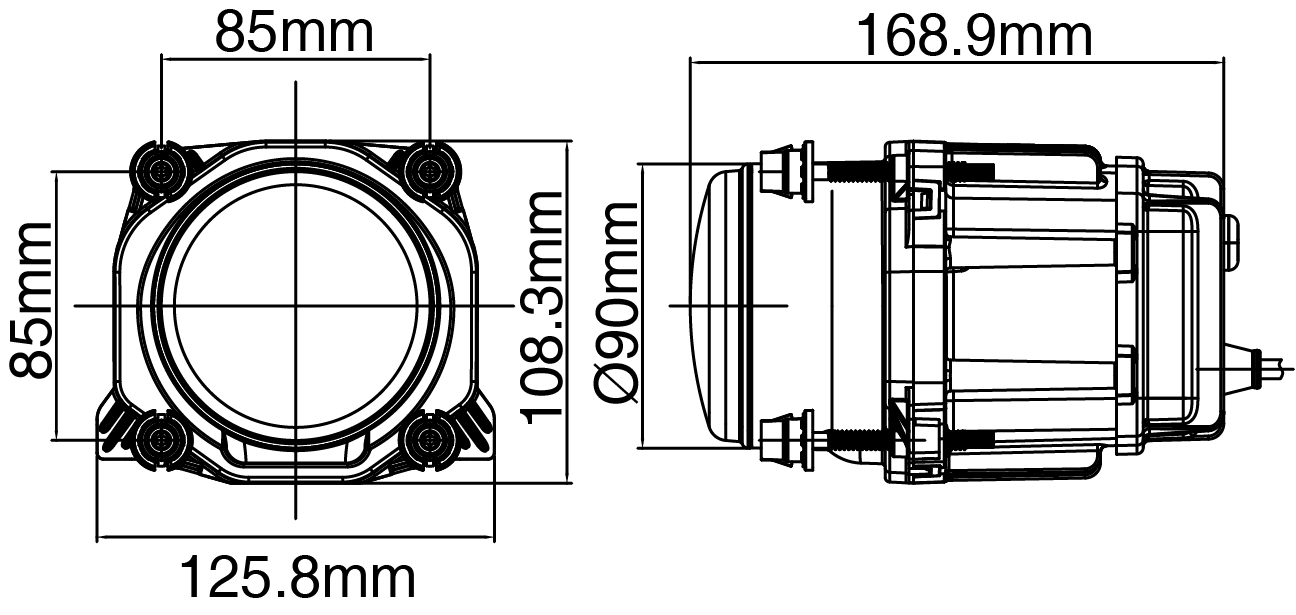

Drawings

Drawings
