Essential Lighting - HEAD LIGHTS

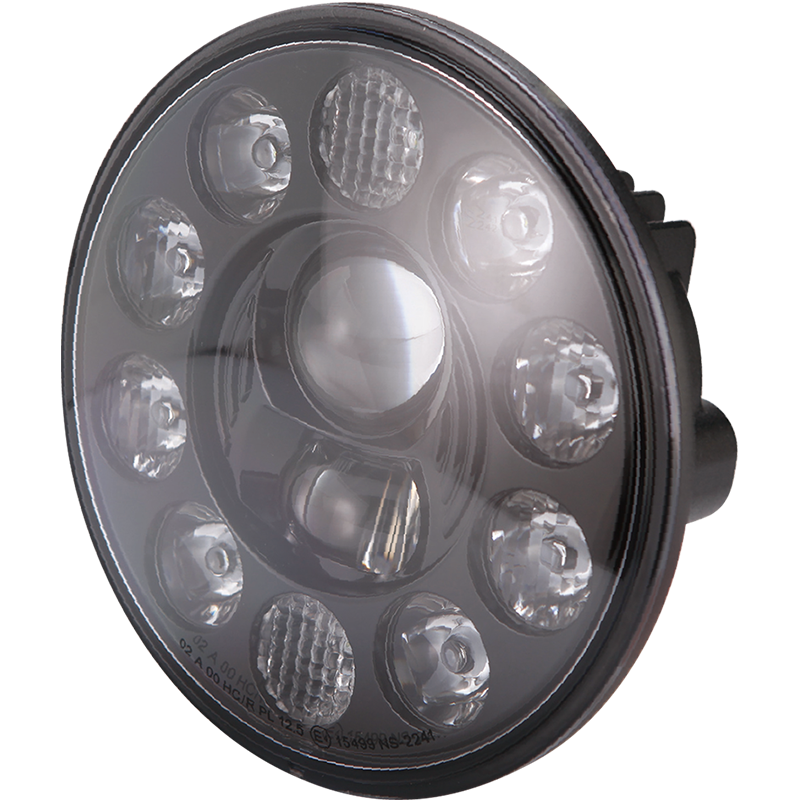

NS-2242 7” LED High/Low Beam Headlamp With Position Lamp

Certification

ECE Homologation

Design Patent

Taiwan: 100300161

EU: 001259568

USA: 29/385312

• EMI Class 5 according to CISPR25
• Ingress Protection IP68
• Aluminum heatsink and plastic reflector
• Polycarbonate lens
• Built-in driver
• Light source:
High beam - High power LED x 10 pcs
Low beam - High power 2-chip LED x 1 pc & 4-chip LED x 1 pc
• Multivolt (9-33DC) suitable for 12V and 24V vehicle
• For right hand driving / left hand traffic
NS-2242  7” LED High/Low Beam Headlamp With Position Lamp
NS-2242  7” LED High/Low Beam Headlamp With Position Lamp

Light Distributions

Light Distributions Light Distributions

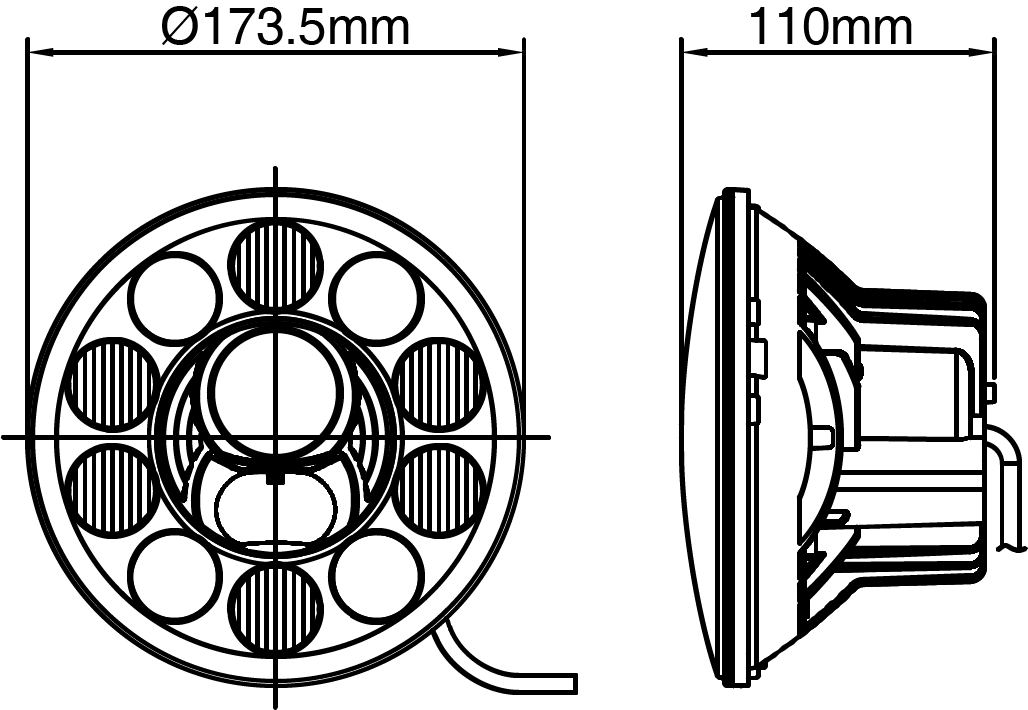

Drawings

Drawings
Inquiry Content
